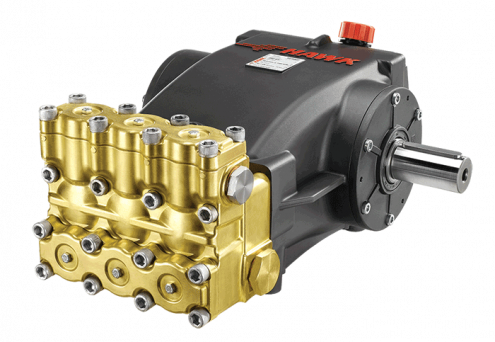

HFR Series

HFR pumps can operate at a maximum pressure of 280 bar, flow rates up to 120 lpm, and with water temperatures up to 65°C (149F).
This model is suitable for fitting on gantry-style washing systems for heavy goods vehicles, on large vehicles for municipal cleaning services,
or misting systems or fire extinguishing systems, where its superior flow rate performance is beneficial.

TECHNICAL CHARACTERISTICS
Weight Kg 49
Oil capacity lt. 3.5
Inlet G 1 - 1 1/4''
Outlet G 3/4''
Request information
TECHNICAL CHARACTERISTICS
Weight Kg 49
Oil capacity lt. 3.5
Inlet G 1 - 1 1/4''
Outlet G 3/4''

The HFR Series is suitable for the following applications:


Industrial Cleaning

Municipality

Misting

Fire Fighting

Find out about all the models in the series HFR.

Part. No.
CODE 		Part. No.
CODE 		FLOW RATE MAX PRESSURE RPM MAX POWER TEMPERATURE POWER TAKE-OFF
L/MIN US GPM BAR PSI HP KW °C °F

HFR60SL 1.099-179.0 60 15.7 280 4100 1000 43 31.6 40 104
HFR60SR 1.099-180.0 60 15.7 280 4100 43 31.6 40 104
HFR80SL 1.099-181.0 80 21.1 150 2175 30.5 22.4 40 104
HFR80SR 1.099-182.0 80 21.1 150 2175 30.5 22.4 40 104
HFR105SL 1.099-183.0 105 27.7 150 2175 40.3 29.7 40 104
HFR105SR 1.099-184.0 105 27.7 150 2175 40.3 29.7 40 104
HFR120SL 1.099-185.0 120 31.7 150 2175 46.1 33.9 40 104
HFR120SR 1.099-186.0 120 31.7 150 2175 46.1 33.9 40 104

HFR60FL 1.099-189.0 60 15.7 280 4100 1450 43 31.6 40 104
HFR60FR 1.099-190.0 60 15.7 280 4100 43 31.6 40 104
HFR80FL 1.099-191.0 80 20.9 280 4100 57.3 42.1 40 104
HFR80FR 1.099-192.0 80 20.9 280 4100 57.3 42.1 40 104
