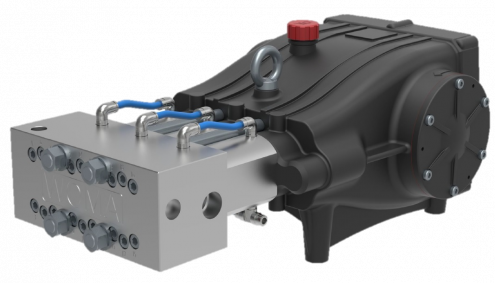

TXX Series

TXX pumps can operate at a maximum pressure of 1000 bar and with water temperatures up to 65°C (149 F). This pump is suitable for various cleaning tasks, e.g in the Chemical and Oil & Gas industry, as well as in the field of ship cleaning.The sealing water system of the pump prevents leakage, allowing a particularly high durability of the high-pressure seals and counteracts the intrusion of air. In addition to that the hard metal plungers used offer increased wear resistance, high thermal shock resistance and high cavitation insensitivity.

TECHNICAL CHARACTERISTICS

Weight	Kg	78
Oil capacity	lt.	5.5
Inlet	G	1"
Outlet	G	24x1.5

Request information

Exploded view

Technical sheets - TXX Pump

Technical manuals

Instruction Manual for the Series TXX

TECHNICAL CHARACTERISTICS

Weight	Kg	78
Oil capacity	lt.	5.5
Inlet	G	1"
Outlet	G	24x1.5

The TXX Series is suitable for the following applications:

Industrial Cleaning

Find out about all the models in the series TXX.

Part. No. CODE	Part. No. CODE	FLOW RATE		MAX PRESSURE		RPM	MAX POWER		TEMPERATURE
		FLOW RATE		MAX PRESSURE			MAX POWER		TEMPERATURE
		L/MIN	US GPM	BAR	PSI		HP	KW	°C	°F

TXX2410L	1.905-515.0	24	6.3	1000	14500	1000	62.8	46.2	65	150
TXX2410R	1.904-999.0	24	6.3	1000	14500		62.8	46.2	65	150
TXX3010L	1.904-998.0	30	7.9	1000	14500		78.5	57.7	65	150
TXX3010R	1.904-997.0	30	7.9	1000	14500		78.5	57.7	65	150

Discover the related ACCESSORIES

Flexible coupling

Flexible couplings for electic motors

SEE THE ACCESSORIES SUITED FOR THIS SERIES >

Flexible coupling

Flexible couplings for electic motors

CODE	MOTOR CONTRUCTION SHAPE	MOTOR P.T.O. Ø	PUMP P.T.O. Ø	FOR PUMP SERIES
CODE	MOTOR CONTRUCTION SHAPE	MOTOR P.T.O. Ø	PUMP P.T.O. Ø	FOR PUMP SERIES
1.904-313.0	IEC225	60 mm	40 mm	HFR, HHP 500 - 1000 rpm, HHP 500 - 1450 rpm, GXT, GXT High temperature, GPX, GXX, TXT, TPX, TXX
1.904-757.0	IEC250	65 mm	40 mm	HFR, HHP 500 - 1000 rpm, GXT, GXT High temperature, GPX, GXX, TXT, TPX, TXX
1.904-758.0	IEC280	75 mm	40 mm	GXT, GXT High temperature, GPX, GXX, TXT, TPX, TXX

Go to the complete technical data sheet

VB 40/1000 ZERO

Valve with zeroed outlet pressure
with bypass

Max lpm 40 & 1.000 bar

SEE THE ACCESSORIES SUITED FOR THIS SERIES >

VB 40/1000 ZERO

Valve with zeroed outlet pressure
with bypass

Max lpm 40 & 1.000 bar

CODE	FLOW RATE		MAX PRESSURE		INLET	OUTLET	BY-PASS
CODE	L/MIN	US GPM	BAR	PSI	INLET	OUTLET	BY-PASS
1.905-849.0	40	10.5	1000	14500	G 3/8 F	G 3/8 F	G 3/8 F

Go to the complete technical data sheet

VS 1100

Pressure Relief Valve

Max 40 lpm & 1.000 bar

SEE THE ACCESSORIES SUITED FOR THIS SERIES >

VS 1100

Pressure Relief Valve

Max 40 lpm & 1.000 bar

CODE	FLOW RATE		MAX PRESSURE		INLET	OUTLET
CODE	L/MIN	US GPM	BAR	PSI	INLET	OUTLET
1.905-850.0	40	10.5	1000	14500	G 3/8 F	G 3/8 F

Go to the complete technical data sheet

RL 1000

Spray gun + lance with adjustable shoulder rest

Max 40 lpm & 1.000 bar

SEE THE ACCESSORIES SUITED FOR THIS SERIES >

RL 1000

Spray gun + lance with adjustable shoulder rest

Max 40 lpm & 1.000 bar

CODE	FLOW RATE		MAX PRESSURE		INLET	OUTLET
CODE	L/MIN	US GPM	BAR	PSI	INLET	OUTLET
1.905-851.0	40	10.5	1000	14500	G 3/8 F	1/4Np TF

Go to the complete technical data sheet

Pressure Gauge

Pressure gauge

SEE THE ACCESSORIES SUITED FOR THIS SERIES >

Pressure Gauge

Pressure gauge

CODE	COUPLING	SCALE		INLET
CODE	COUPLING	BAR	PSI	INLET
1.905-848.0	Radial / Radiale	1600	23206	G 1/2 M

Go to the complete technical data sheet
