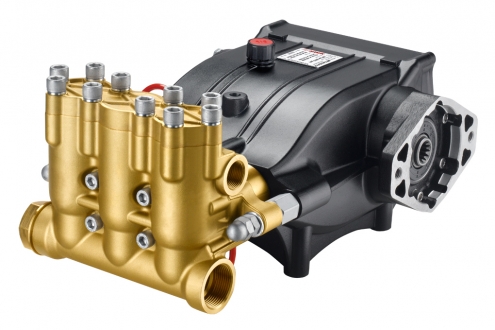

MPX-HY Series

MPX-HY pumps can operate at a maximum pressure of 350 bar and with water temperatures up to 65°C (150F). This version has a flange for coupling up to a hydraulically-operated motor and so it adapts perfectly to vehicles for municipal cleaning services

TECHNICAL CHARACTERISTICS

Weight	Kg	34.5
Oil capacity	lt.	2.3
Inlet	G	3/4"
Outlet	G	1/2"

Request information

Exploded view

Technical sheets - MPX-HY Pump

TECHNICAL CHARACTERISTICS

Weight	Kg	34.5
Oil capacity	lt.	2.3
Inlet	G	3/4"
Outlet	G	1/2"

The MPX-HY Series is suitable for the following applications:

Industrial Cleaning

Municipality

Find out about all the models in the series MPX-HY.

Part. No. CODE	Part. No. CODE	FLOW RATE				MAX PRESSURE		RPM		MAX POWER				TEMPERATURE		POWER TAKE-OFF
		L/MIN		US GPM		MAX PRESSURE		RPM		HP		KW		TEMPERATURE
		50Hz	60Hz	50Hz	60Hz	BAR	PSI	50Hz	60Hz	50Hz	60Hz	50Hz	60Hz	°C	°F

MPX4535HYR	1.904-784.0	45	54	11.9	14.3	350	5075	1450	1740	40.5	48.6	29.8	35.8	65	150
MPX5825HYR	1.904-785.0	58	70	15.3	18.5	250	3625	1450	1740	37.2	44.9	27.4	33	65	150

Discover the related ACCESSORIES

Hydraulic gear motor

SEE THE ACCESSORIES SUITED FOR THIS SERIES >

Hydraulic gear motor

CODE	DISPLACEMENT	OIL FLOW RATE AT 1450 RPM		MAX OIL PRESSURE		SPEED	INLET	OUTLET	DRAINAGE	FOR PUMP SERIES
CODE	cm³ rev	l/min	us gpm	BAR	PSI	RPM	INLET	OUTLET	DRAINAGE	FOR PUMP SERIES
9.853-811.0	71	97.6	25.8	200	2900	1000 - 2500	G 1" 1/4	G 1" 1/4	G 3/8"	MXT-HY, MPX-HY

Go to the complete technical data sheet

Hydraulic piston motor

SEE THE ACCESSORIES SUITED FOR THIS SERIES >

Hydraulic piston motor

CODE	DISPLACEMENT	OIL FLOW RATE AT 1450 RPM		MAX OIL PRESSURE		SPEED	INLET	OUTLET	DRAINAGE	FOR PUMP SERIES
CODE	cm³ rev	l/min	us gpm	BAR	PSI	RPM	INLET	OUTLET	DRAINAGE	FOR PUMP SERIES
9.853-812.0	47	68.5	18	350	5080	500 - 4000	G 3/4''	G 3/4''	G 1/2"	MXT-HY, MPX-HY
9.853-813.0	62	90.3	23.9	320	4640	500 - 4000	G 3/4''	G 3/4''	G 1/2"	MXT-HY, MPX-HY

Go to the complete technical data sheet

VB 85/280

Unloader valve
with by-pass

Max lpm 80 & 280 bar

SEE THE ACCESSORIES SUITED FOR THIS SERIES >

VB 85/280

Unloader valve
with by-pass

Max lpm 80 & 280 bar

CODE	FLOW RATE		MAX PRESSURE		INLET	OUTLET	BY-PASS
CODE	L/MIN	US GPM	BAR	PSI	INLET	OUTLET	BY-PASS
1.099-504.0	80	21	280	4050	G 1/2 F	G 1/2 F	G 1/2 F

Go to the complete technical data sheet

VRPP 170

Unloader valve with by-pass and pneumatic control

Max lpm 200 & 150 bar

SEE THE ACCESSORIES SUITED FOR THIS SERIES >

VRPP 170

Unloader valve with by-pass and pneumatic control

Max lpm 200 & 150 bar

CODE	FLOW RATE		MAX PRESSURE		INLET	OUTLET	BY-PASS
CODE	L/MIN	US GPM	BAR	PSI	INLET	OUTLET	BY-PASS
1.904-283.0	200	53	150	2200	G 1F	G 1F	G 1F

Go to the complete technical data sheet

VBR 500

Unloader valve
with by-pass

Max lpm 80 & 500 bar

SEE THE ACCESSORIES SUITED FOR THIS SERIES >

VBR 500

Unloader valve
with by-pass

Max lpm 80 & 500 bar

CODE	FLOW RATE		MAX PRESSURE		INLET	OUTLET	BY-PASS
CODE	L/MIN	US GPM	BAR	PSI	INLET	OUTLET	BY-PASS
1.099-483.0	80	21	500	7250	G 1/2 F	G 1/2 F	G 1/2 F

Go to the complete technical data sheet

VS 500

Pressure relief valve

Max 80 lpm & 500 bar

SEE THE ACCESSORIES SUITED FOR THIS SERIES >

VS 500

Pressure relief valve

Max 80 lpm & 500 bar

CODE	FLOW RATE		MAX PRESSURE		INLET	OUTLET
CODE	L/MIN	US GPM	BAR	PSI	INLET	OUTLET
1.099-500.0	80	21	500	7250	G 1/2 F	G 3/8 F

Go to the complete technical data sheet

RL 84 Spray gun

Spray gun

Max 80 lpm & 500 bar

SEE THE ACCESSORIES SUITED FOR THIS SERIES >

RL 84 Spray gun

Spray gun

Max 80 lpm & 500 bar

CODE	FLOW RATE		MAX PRESSURE		TEMPERATURE		INLET	OUTLET
CODE	L/MIN	US GPM	BAR	PSI	°C	°F	INLET	OUTLET
1.099-523.0	80	21.1	500	7250	100	210	G 1/2 F	G 1/2 F

Go to the complete technical data sheet

Shoulder Rest

Shoulder Rest

SEE THE ACCESSORIES SUITED FOR THIS SERIES >

Shoulder Rest

Shoulder Rest

CODE	FOR ACCESSORIES
CODE	FOR ACCESSORIES
1.099-686.0	RL84 - RL204 - RL600

Go to the complete technical data sheet

High flow lance

Single lance with handle for RL84 and RL204

Max 200 lpm & 500 bar

SEE THE ACCESSORIES SUITED FOR THIS SERIES >

High flow lance

Single lance with handle for RL84 and RL204

Max 200 lpm & 500 bar

CODE	LENGTH	FLOW RATE		MAX PRESSURE		TEMPERATURE		INLET	OUTLET
CODE	MM	L/MIN	US GPM	BAR	PSI	°C	°F	INLET	OUTLET
1.099-654.0	800	200	53	500	7250	43	109	G 1/2 M	1/4 Npt F

Go to the complete technical data sheet

Pressure Gauge

Pressure gauge

SEE THE ACCESSORIES SUITED FOR THIS SERIES >

Pressure Gauge

Pressure gauge

CODE	COUPLING	SCALE		INLET
CODE	COUPLING	BAR	PSI	INLET
1.099-554.0	Radial / Radiale	400	5800	G 1/4 M

Go to the complete technical data sheet
